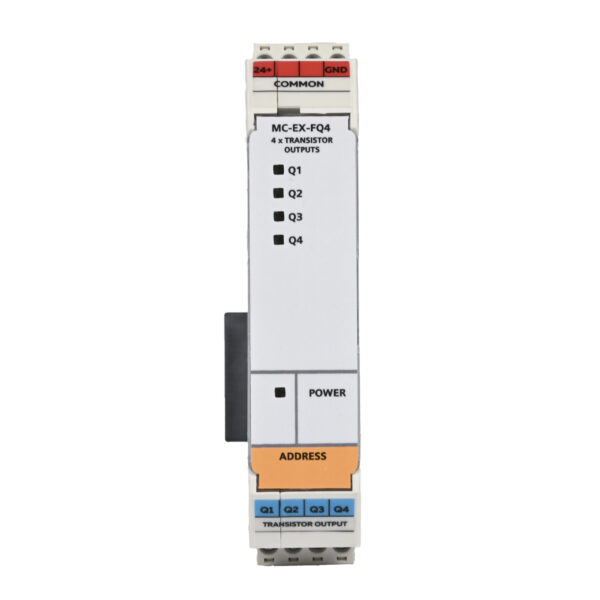

MC-EX-FQ4 | Transistor Output x 4

MC-EX-FQ4_datasheet

Summary

MC-EX-FQ4 module is an expansion module that can be used with MC-CPU-CM4-Gx CPU module. The major purpose of this expansion module is to provide outputs. This module has four outputs optically separated internally. Further, This Fast Transistor Output expansion module connects to a CPU module by board-to-board connector with 40 pins.

Specifications

• Programming Direct Access via RPI CM4 GPIO
• Possible to Send Digital signals
• Optically Isolated for protection.
• 24V DC Rated Supply Voltage

Expansion

•  Supports maximum one unit for single Bus expansion

Ports & Connections

• 40 pin board board-to-board connector integrated for expansion
• Top Hat type Din Rail Mounting
• 4 x Outputs Open Collector (Transistor)
• 1 x Input Power
