MC-EX-FD4_datasheet
Summary

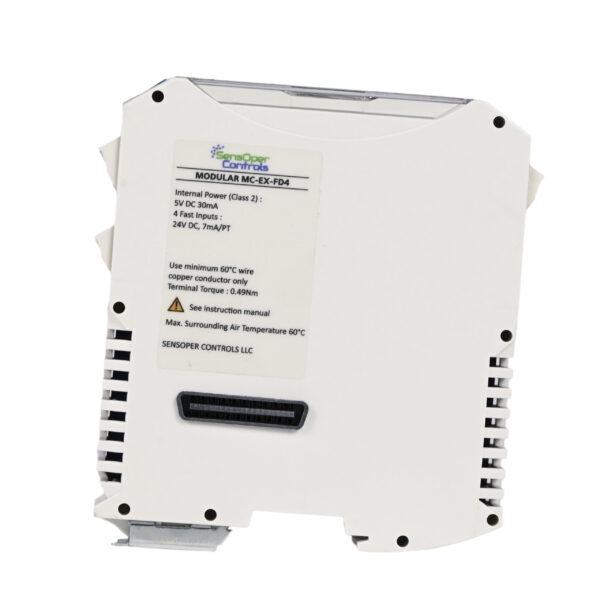

MC-EX-FD4 Fast Input module is an expansion module that can be used with MC-CPU-CM4-Gx CPU module. This module was implemented for read Digital Input signals. These digital signals process by CPU module. The four inputs in this module optically isolated internally as a protection feature. The module expansion is supported by board-to-board connector with 40 pins.
Specifications
- Programming Direct Access via RPI CM4 GPIO
- Possible to read Digital signals
- Optically Isolated for protection.
- Support for Sink/Source Polarity
- 24V DC Rated Supply Voltage
Expansion
- Supports maximum one unit for single Bus expansion
Ports & Connections
- 40 pin board board-to-board connector integrated for expansion
- Top Hat type Din Rail Mounting
- 4 x Digital Inputs 0 – 24V DC
- 1 x Input Power
