Summary

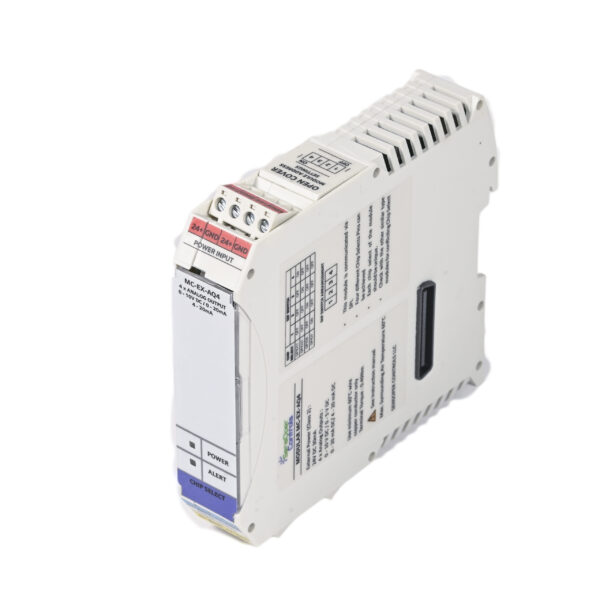

MC-EX-AQ4 Analog Output module is an expansion module that can be use with MC-CPU-CM4-Gx CPU module. This module was implemented for send 0-10V and 0-20mA Analog signals. This expansion module include SPI interface with an address configurable DIP switches for establish communication with CPU module. 13 bit monotonic DAC supports up to four outputs in this module. The module expansion is supported by board-to-board connector with 40 pins.
Specifications
- 13 Bit resolution Monotonic DAC included for Analog Outputs
- Possible to send 0-10V/0-20mA Analog signals
- Programable AD74413R chip via SPI protocol.
- Integrated DIP switches for chip select
- Accuracy of ±2 % FSR
- 24V DC Rated Supply Voltage
Expansion
- Supports maximum two units for single Bus expansion
Ports & Connections
- 40 pin board board-to-board connector integrated for expansion
- Top Hat type Din Rail Mounting
- 4 x Analog Outputs 0-10V/0-20mA
- 1 x Input Power
