$693.72
Industrial Controller based on Raspberry CM4 with I/O compatible with industrial levels. With a panel mount package and 7 inch IPS touch panel it bring characteristics of a HMI. Factory installed Node-RED on Raspbian OS. Ready for a true industrial implementation of Raspberry CM4.
CPU Raspberry CM4
Versions Available
2GB RAM / No eMMC
2GB RAM / 8GB eMMC
2GB RAM / 16GB eMMC
4GB RAM / 32GB eMMC

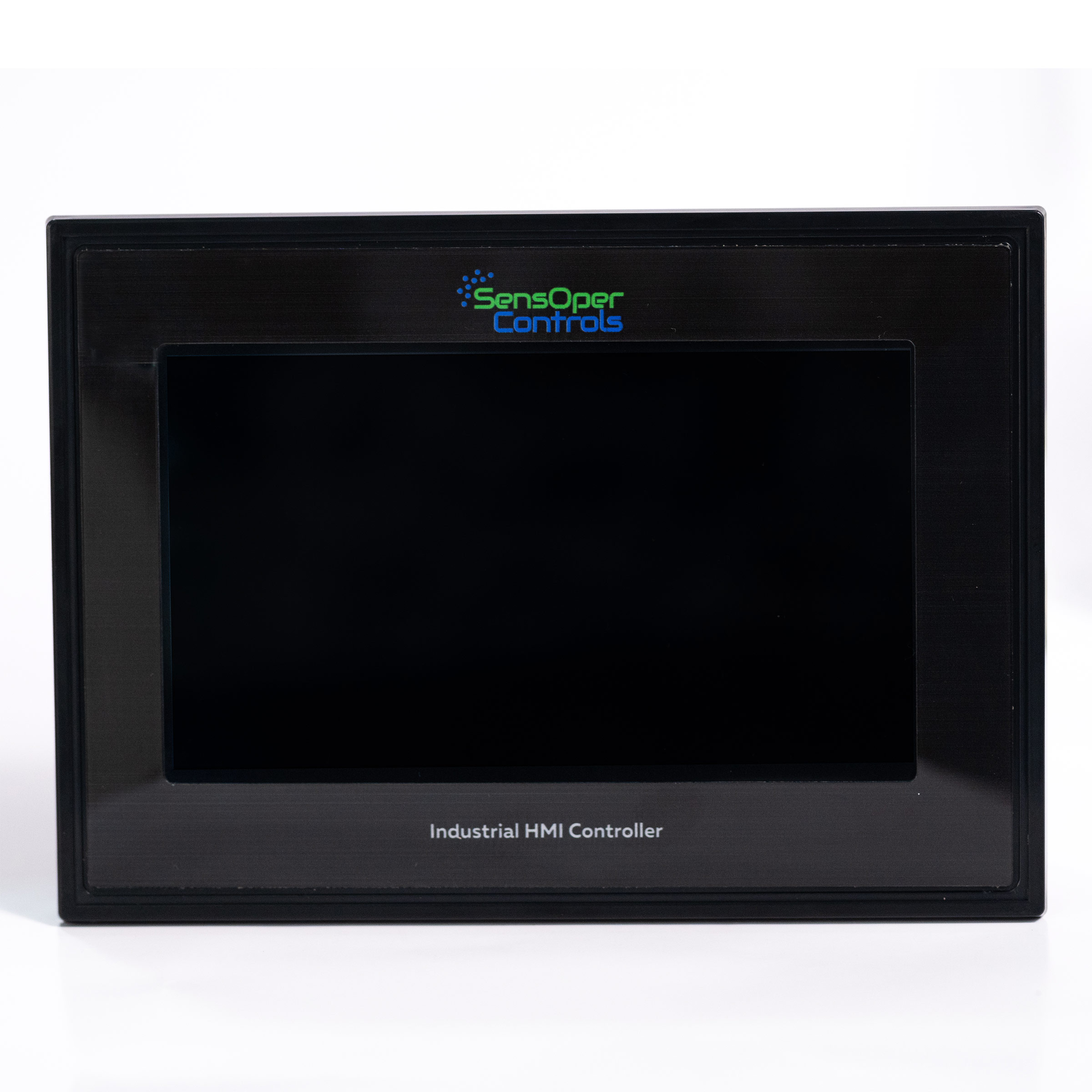

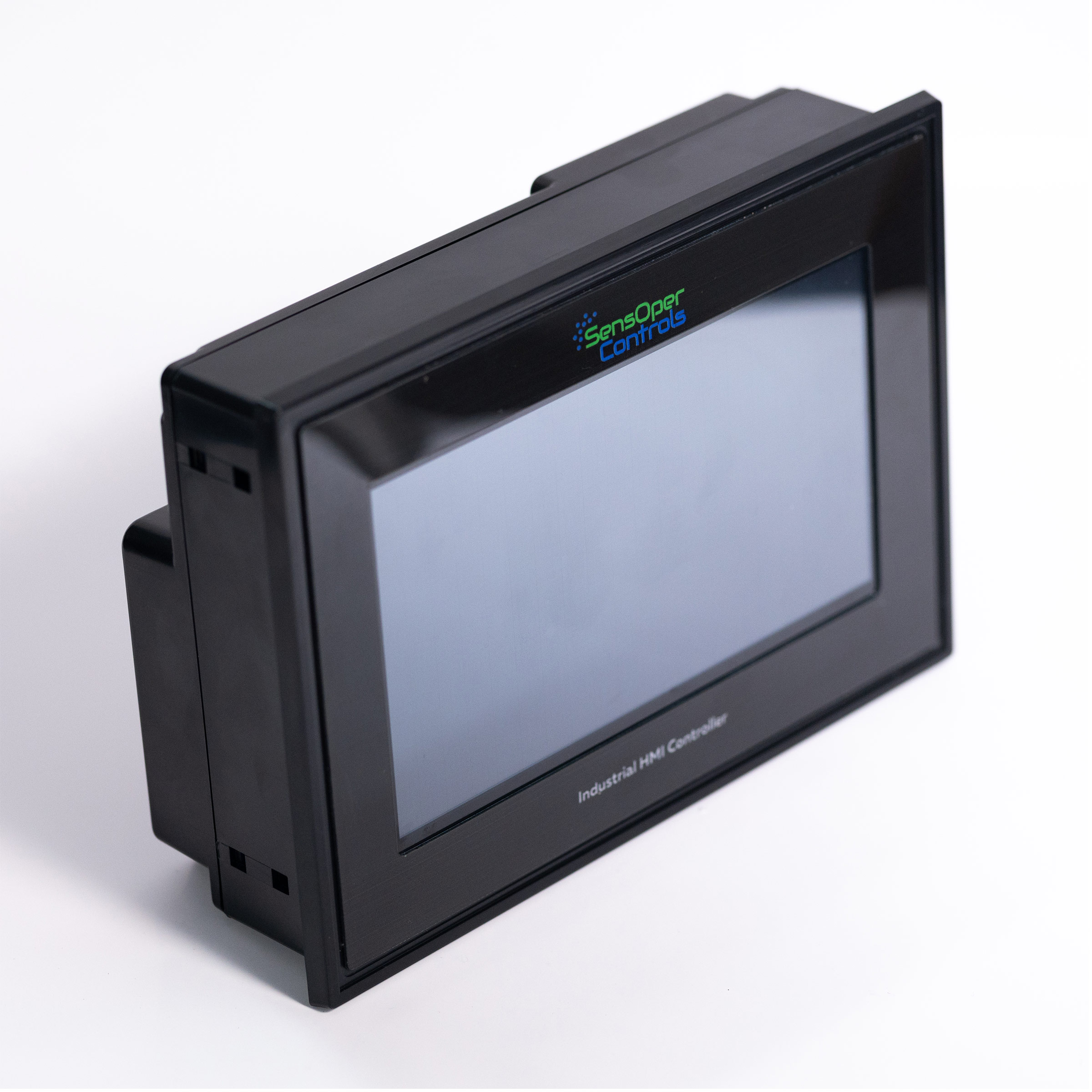

Display
7 inch IPS multitouch capacitive

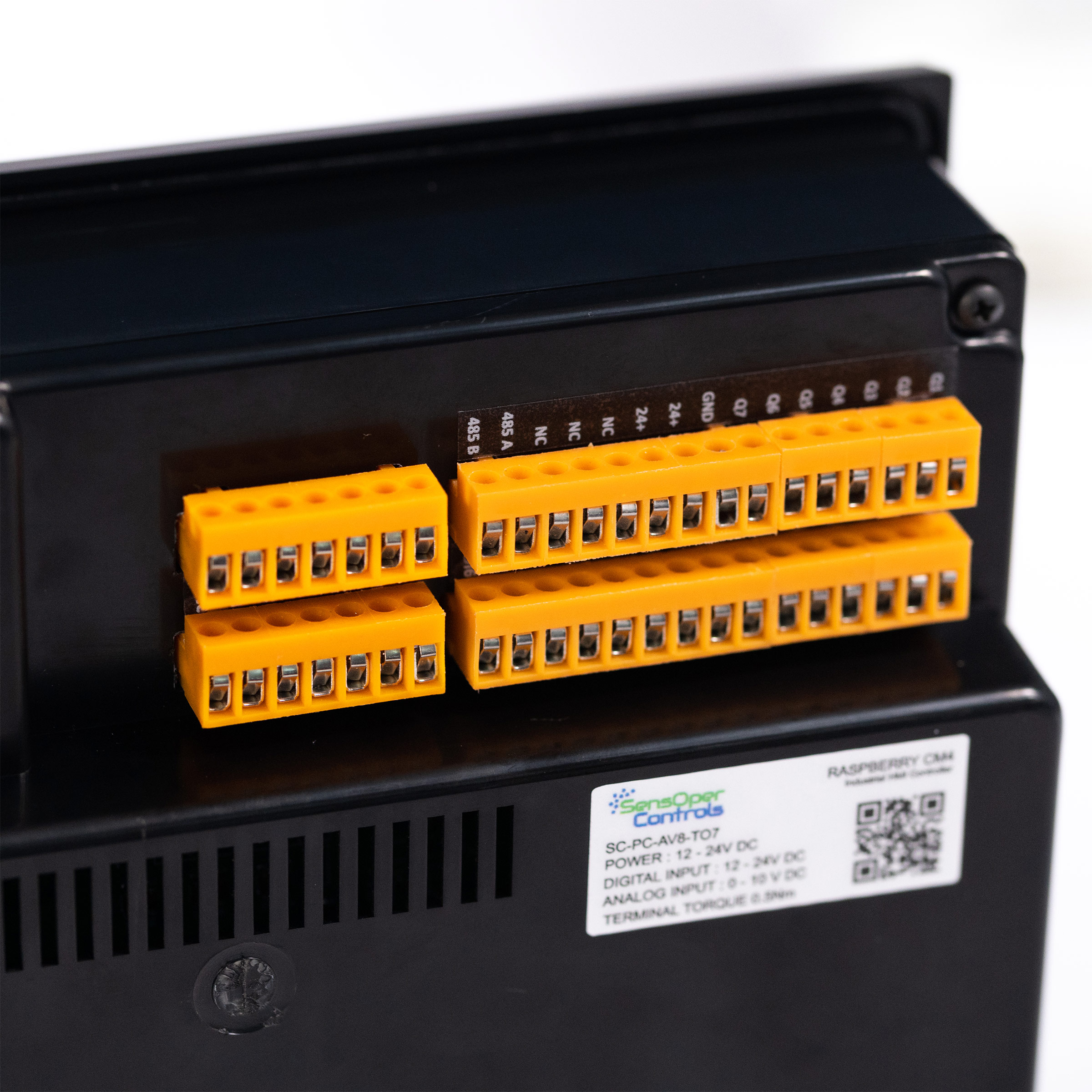

Inputs & Outputs
– 8 x Digital Inputs
– 8 x Analog Inputs 0 – 10V DC
– 7 x Transistor Outputs
– 1 x RS-485
| Weight | 0.24 kg |
|---|---|
| Dimensions | 25 × 17.5 × 11 cm |
| Rates Supply Voltage | 24V DC |
| Discrete input number | 8 x Digital Inputs |
| Discrete output number | 7 Transistor outputs |

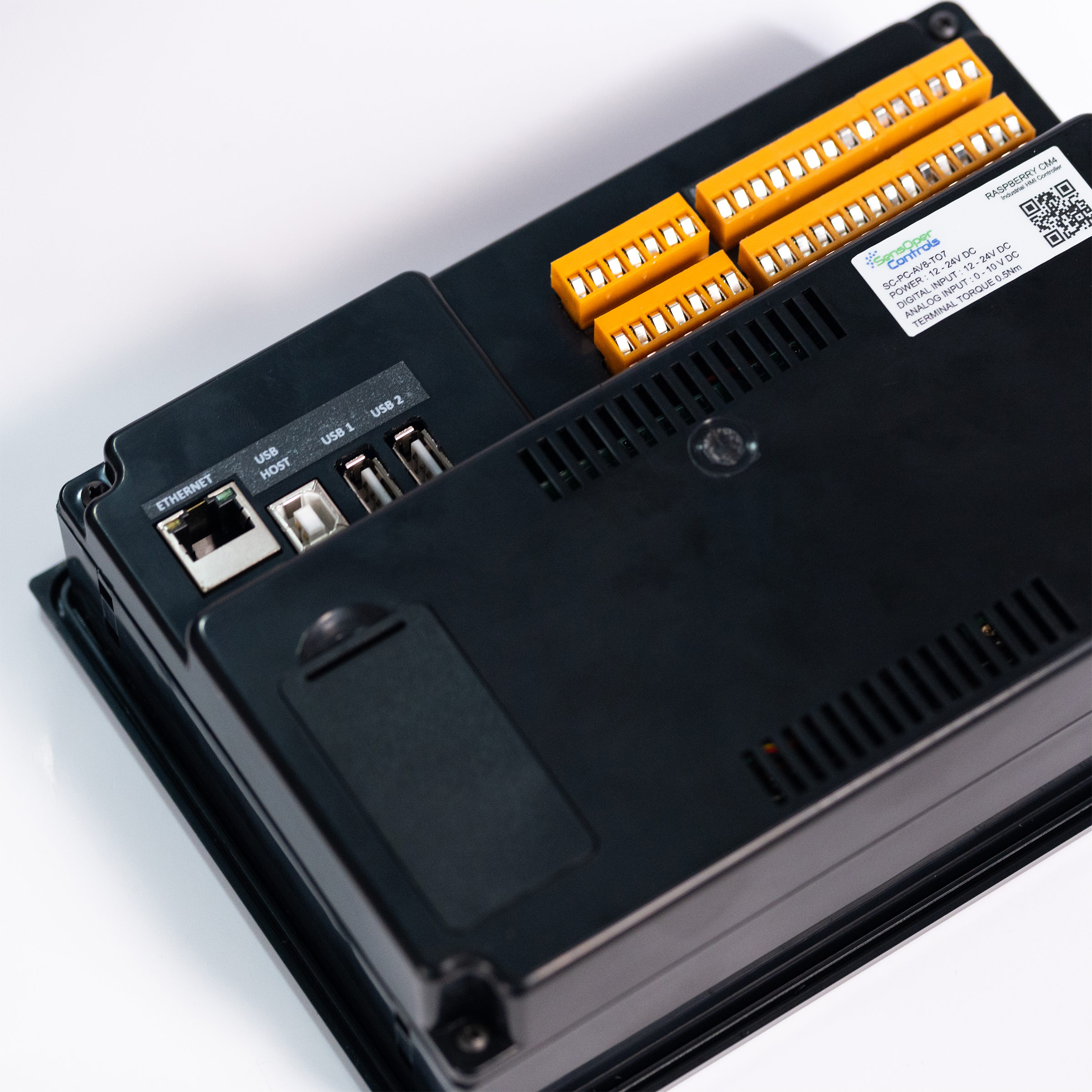

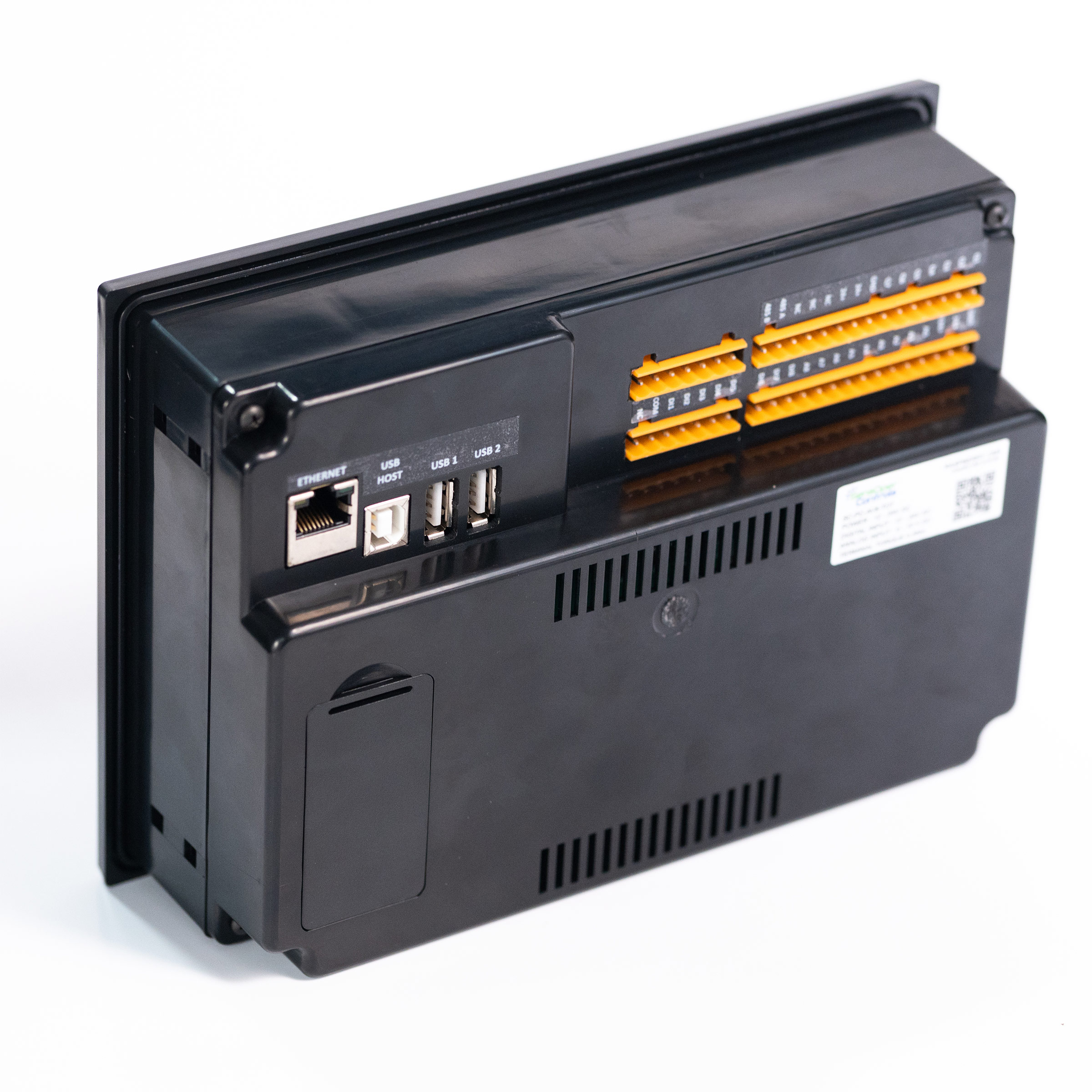

| Communication | 1 x RS-485, 1 x Gigabit Ethernet |
| Analog Inputs | 8 x 0 – 10V DC |
| CPU Type | 2GB RAM / No EMMC, 2GB RAM / 8 GB eMMC, 2GB RAM / 16 GB eMMC, 4GB RAM / 32 GB eMMC |
SC-PC-AV8-TO7 |
|
$693.72
|
