Name: SC-EN-I6-AM4
SKU: SC-EN-I6-AV4-1
Price: 312.00 USD
Availability: InStock

SC-EN-I6-AM4

$312.00

For Industrial IOT Applications Industrial ESP32, Ready for Industrial Environments : Arduino and ESP-IDF

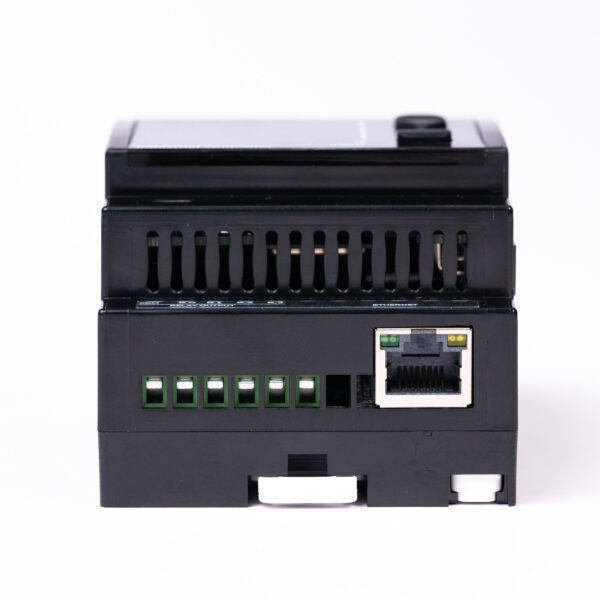

USB Programmable Industrial ESP32 with OLED Display and din-rail mount. It is designed for protection and reliability.

ESP32 Based devices focused on industrial IoT and monitoring applications. Equipped with 6 x Isolated Digital Inputs, which are sink and source configurable. RS-485 comes standard making it able to work as a Modbus Device or connect with any other field bus. ESp32 Ethernet, with microSD card and RTC makes the device suite data logging and webserver applications.

Sensoper Industrial ESP32 controller is USB programmable and expandable with the side expansion port.

SKU: SC-EN-I6-AV4-1 Category: ESP32 Ethernet

Peripherals
ESP32-WROOM SoC
WiFi Antenna: Internal
Optional : External
USB Connection for Programming
3 Programmable Buttons
LED I/O Indicators
W5500 Ethernet
microSD Card slot

Display
0.96 inch OLED

Inputs & Outputs
– 6 x Digital Inputs
– 4 x Analog Inputs 4 – 20mA DC
– 1 x Ethernet Connectivity
– 1 x RS-485

Applications

– Programmable Controller

– DIN-Rail IoT Device
– MQTT device

– I/O Controller

– Industrial ESP32

– IoT Node
– Modbus Device

– IoT Webserver

SC-EN-I6-AM4_SC-EN-Range-Datasheet

Weight	0.24 kg
Dimensions	12 × 12 × 11 cm
Rates Supply Voltage	24 V DC
Discrete input number	6 x Digital Inputs
Communication	1 x RS-485, 1 x Ethernet W5500
CPU Type	ESP32-WROOM32
Analog Input	4 x 4 – 20mA
