An expandable controller for modern controlling and communication needs.
SENSOPER Company Modular Controller is powered by Raspberry PI CM4, which is similar in specification to Raspberry PI4. The CMC is focused on communication and controlling needs of modern connected machinery and plants. Its expandable with CPU module as its base and expansion modules for I/O and communication requirements.

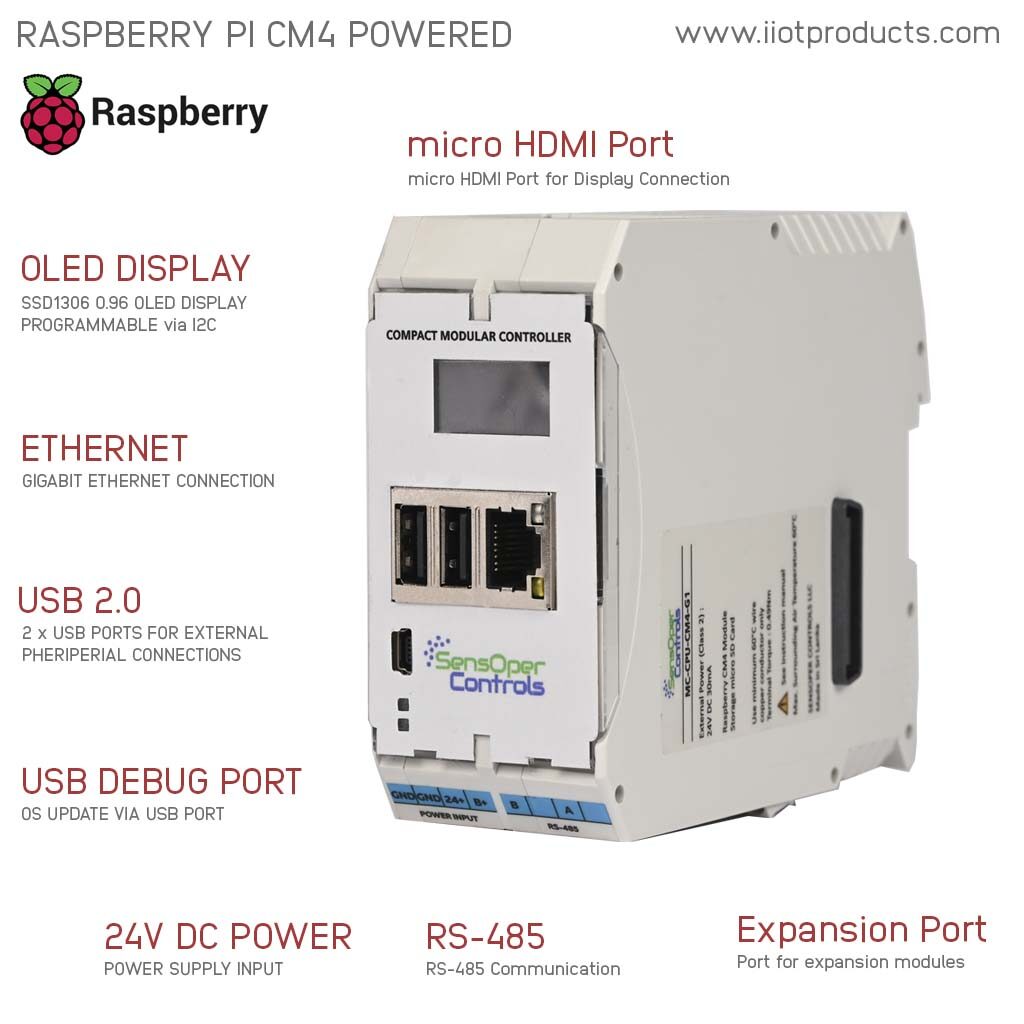

CPU Module
- The base module for expandable controllers
- Raspberry PI CM4 based
- Expansion port to support expansions
- OLED Display to view status
- List Item
- micro HDMI Display connection
- microSD card support (non eMMC models)
- 2 x USB Ports
- GIGABIT Ethernet
- 24V DC POWER
Programming
- Python Programming
The standard operating system of the CMC is Raspbian OS which is based on Debian Linux. Python is a beginner-friendly programming language that is used in schools, web development, scientific research, and in many other industries.

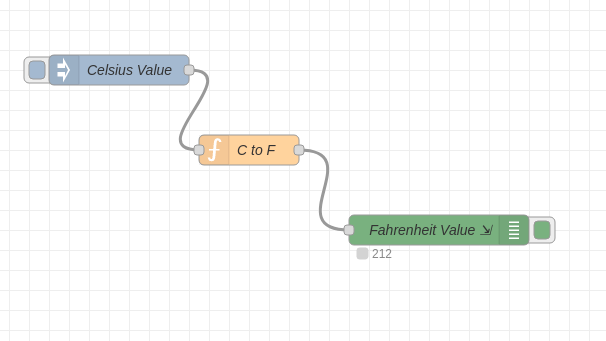

- Node-RED Programming
Node-RED is a programming tool for wiring together hardware devices, APIs and online services in new and interesting ways.
It provides a browser-based editor that makes it easy to wire together flows using the wide range of nodes in the palette that can be deployed to its runtime in a single-click.
The standard operating system of the CMC is Raspbian OS which is based on Debian Linux. Python is a beginner-friendly programming language that is used in schools, web development, scientific research, and in many other industries.
Expandability

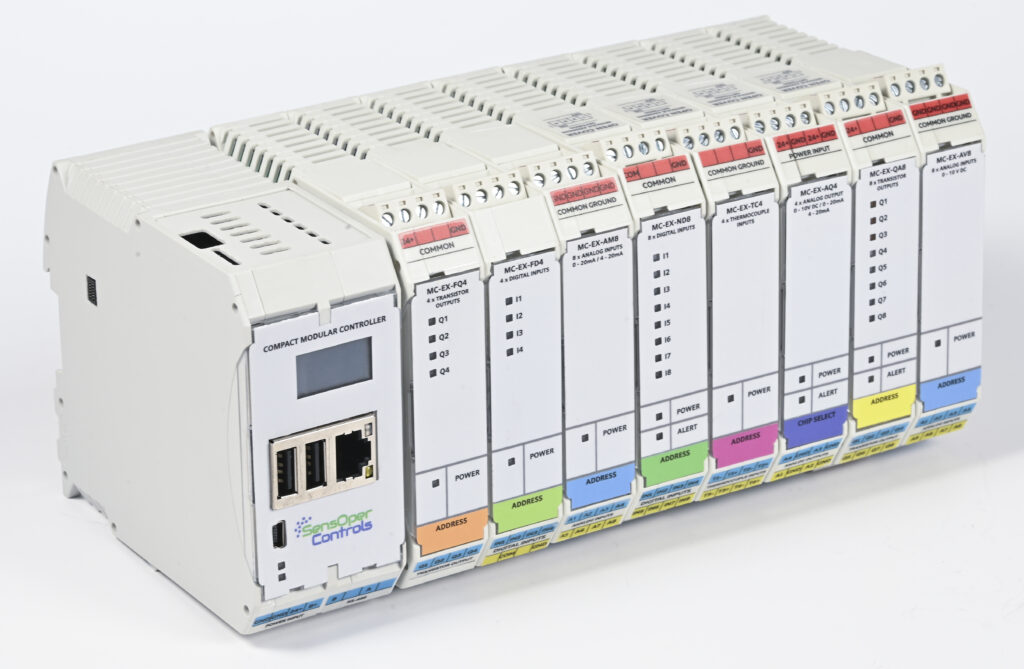

The Compact Modular Controller can be expanded according the requirement of Input, Outputs and Communication.
The I/O modules offered covers industrial requirements of controlling and monitoring.
The base controller has Ethernet, WiFi and RS-485 as standard. Additionally its communication capabilities can be expanded with GSM/LTE modem or LoRa modem to make it work as a LoRa gateway.
I/O Expansions
- 8 x 0 - 10V Analog Inputs
- 8 x 4 - 20mA Analog Inputs
- 8 x Digital Inputs
- 8 x Transistor Outputs
- 4 x Fast Inputs
- 4 x Fast Transistor Outputs
- 4 x Thermocouple Inputs
- 4 x 0 - 10V Analog Outputs
- 4 x 4 - 20mA Analog Outputs
Communication Expansions
- GSM / LTE Modem
- LoRa Expansion

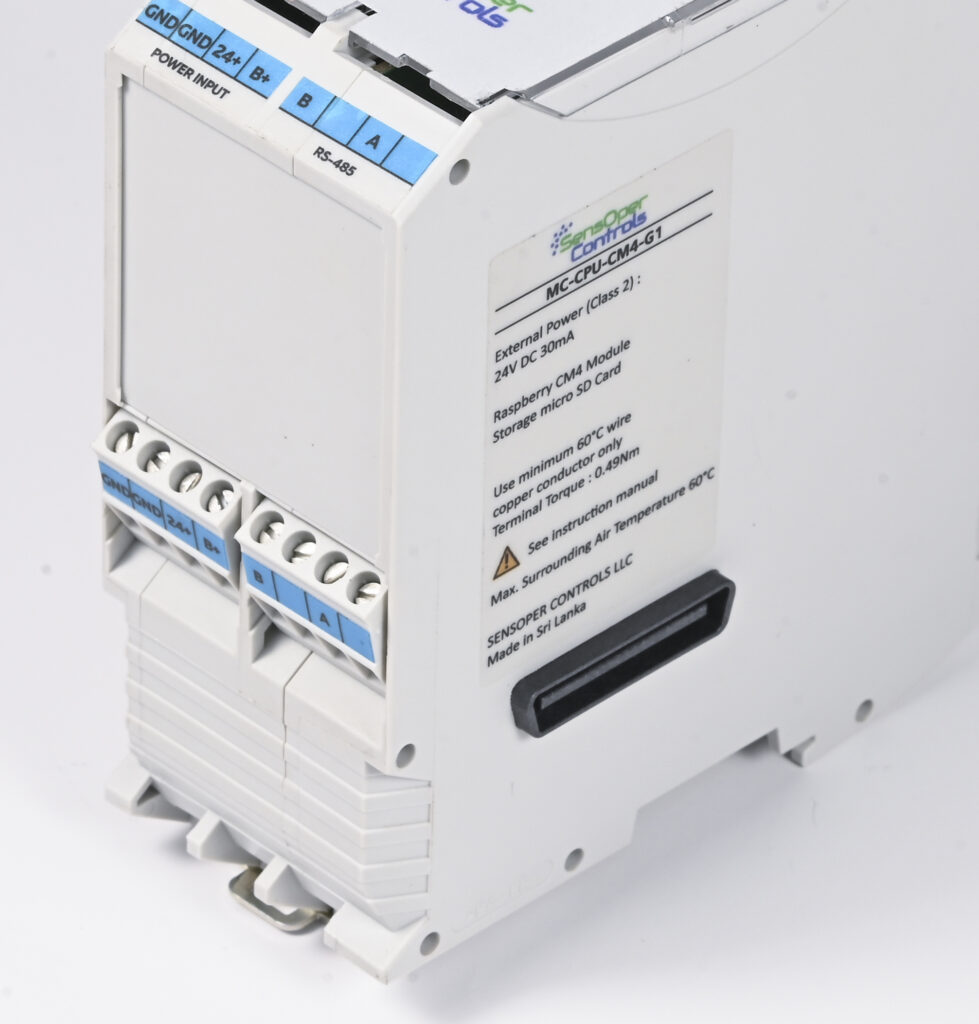

The Future proof expansion port
The expansion port of the controller is has all the connection it requires for future development. From I2C, SPI to additional USB connections.
The same port delivers power to the devices on expansion bus, making all capable of running on a single power supply.
- 3.3V POWER
- 5V POWER
- SPI COMMUNICATION
- I2C CHANNEL 1
- I2C CHANNEL 2
- UART PORT 1
- UART PORT 2
- USB 2.0 PORT 1
- USB 2.0 PORT 2
- ADDITIONAL GPIO
