Setup Display Resolution

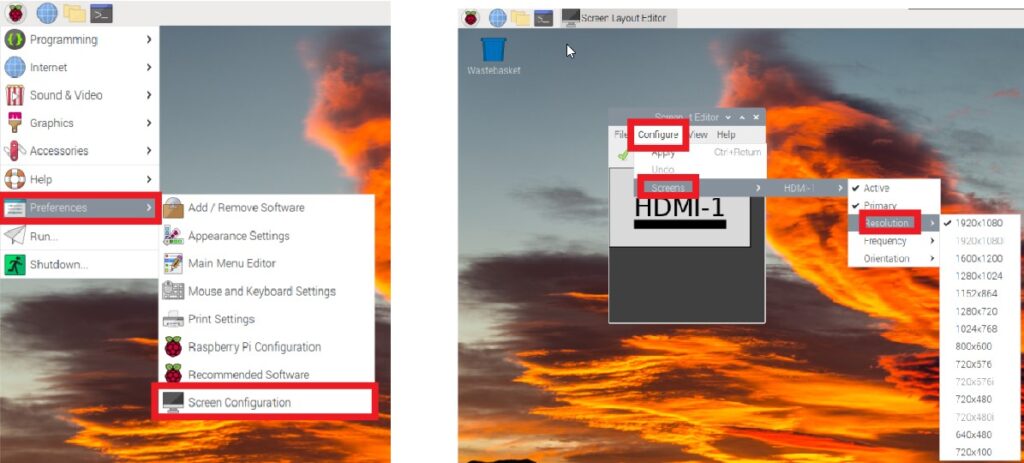

Figure 1: Display Resolution Setup
  1. According to Figure 1 follow Applications Menu > Preference > Screen Configuration. Then Screen Layout Editor window will appear. Then follow Configure > Screens > HDMI > Resolution and then select appropriate resolution.

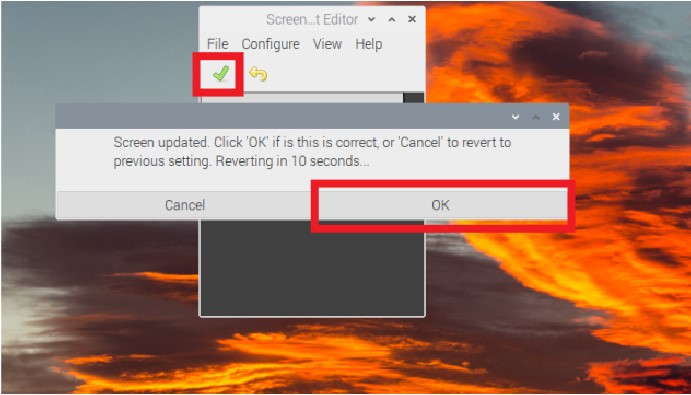

  2. Then green color tick and click ‘OK’ on appeared window according to Figure 2.
Figure 2: Save Display settings
