Connecting the Display

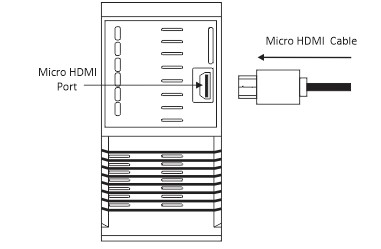

Figure 1: Connect Standard HDMI to Micro HDMI cable in to Micro HDMI port on the device

CPU module include a Micro HDMI display output port. So, use Micro HDMI to Standard HDMI cable. Connect the cable before turn on the CPU module as shown in above Figure 1.
