Connect Expansion Module and RUN a Example Code.

  1. After following instructions in previous sections. Connect a selected expansion module in to the 40 pin board to board connector in CPU Module (Explained in MC-CPU-CM4-Gx datasheet).
  2. Follow the File Manager > Pi > Rpi_Moduler_test, then open Rpi_Moduler_test folder.
  3. In Rpi_Moduler_test folder include example program for every expansion module.
  4. Select the example program that matches with the expansion module shown in Figure 1.

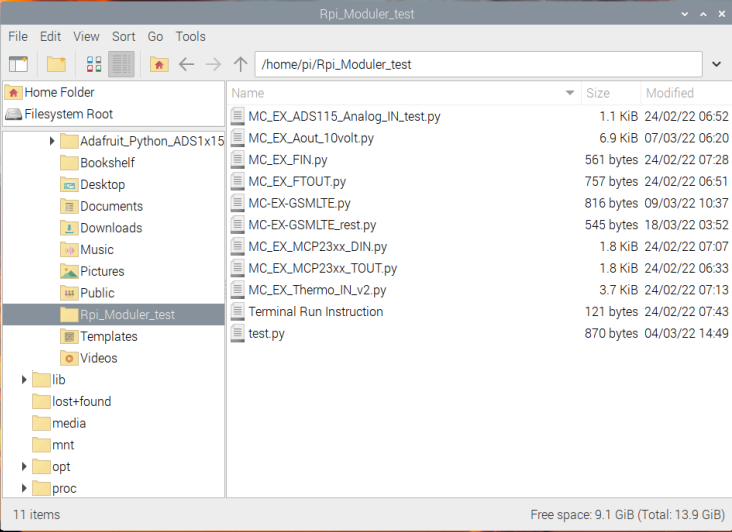

Figure 1: The example programs for expansion modules.

5. The python program will open on default Thonny Python IDE. Click RUN for start the program shown in Figure 2.

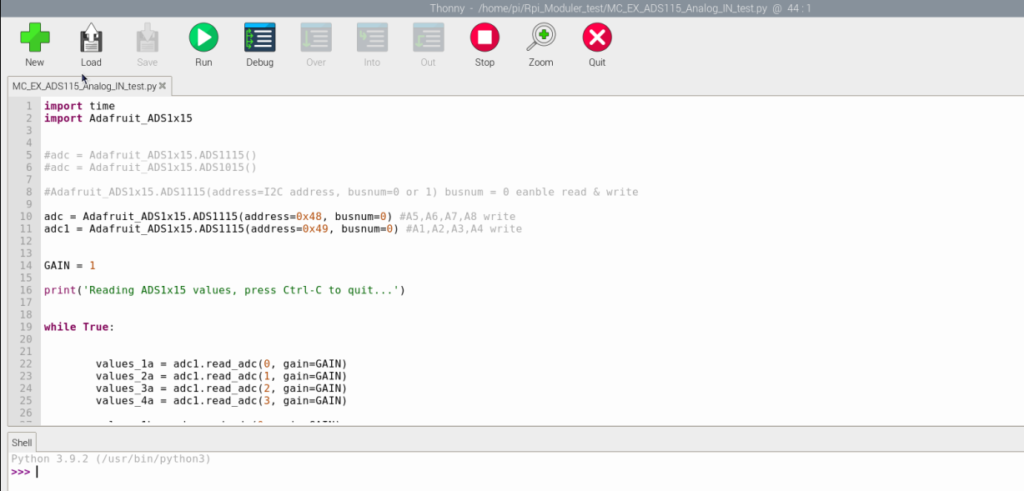

Figure 2: The example programs opened in Thonny Python IDE.
