Access with VNC

First download and install VNC viewer on you PC through link.

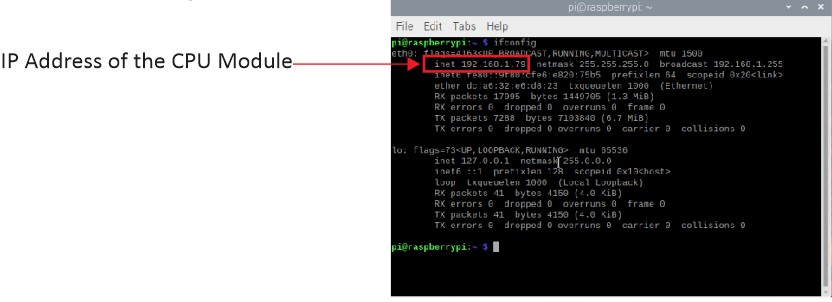

Open terminal window and type ‘ifconfig’ and run the command . Then network details of the CPU module will appear on terminal window as shown in Figure 1 below.

Figure 1: CPU Module network details

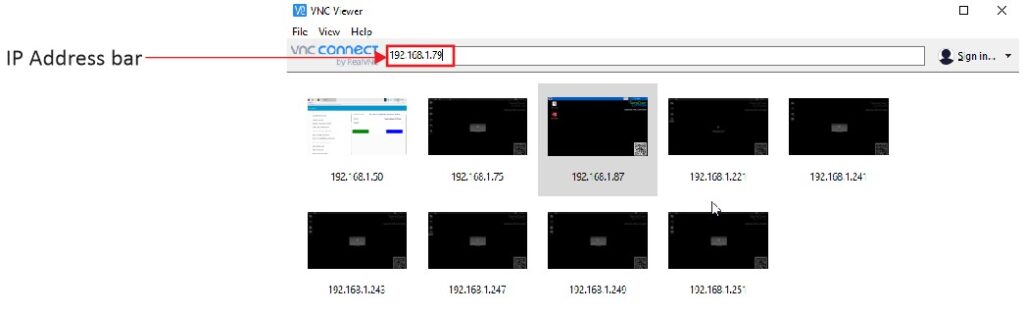

3. Open VNC Viewer on PC and type the IP address of CPU module on to address bar according to Figure 2. Then press ‘Enter’.

Figure 2: VNC Viewer IP address enter

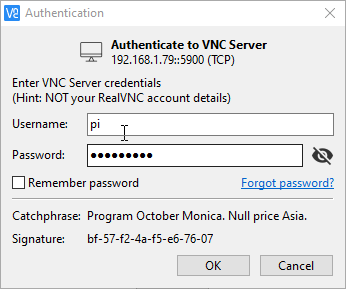

4. Now enter the Username and password on appeared window shown in Figure 3 below. Default User name is ‘PI’ and password is ‘raspberry’ click ‘OK’..

Figure 3: VNC Viewer IP address enter

5. Now new window will appear that shows Home screen of the CPU module. With VNC possible to operate the CPU module without External display.

Figure 4: VNC view of the CPU module display.
