Wiring Diagram (Powerup & Output Terminals)

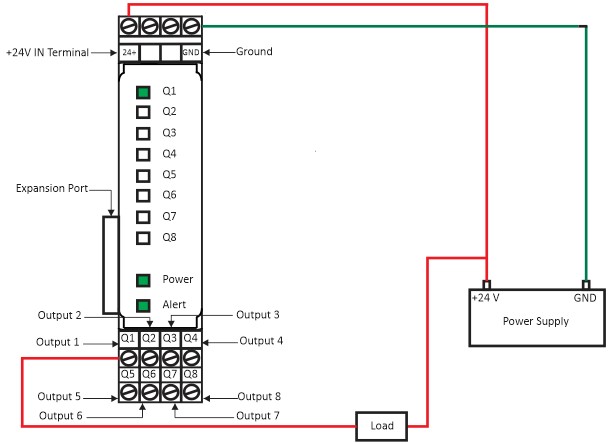

Figure 1(a): Transistor Output Expansion module power up and Output wiring.

*Make sure not turn on all DIP switches at same time.

CPU Module and Expansion Module GPIO Connection Diagram

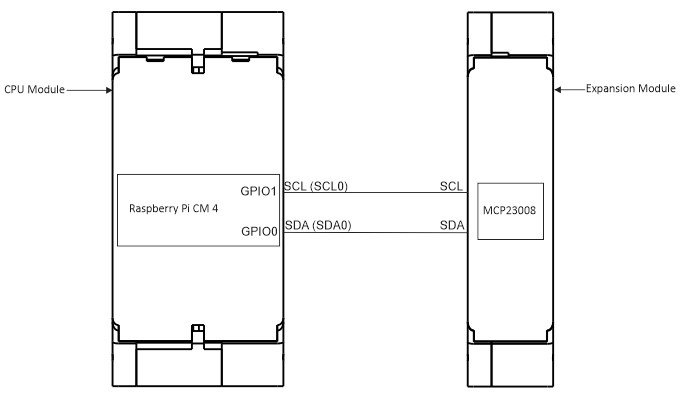

Figure 1(b): The GPIO connection with CPU module and Expansion Module.
