  3. MC-EX-FQ4 | Fast Transistor Output Expansion Module
  4. Expansion Module Startup Guide
  5. Wiring Diagram (Powerup & Output Terminals)

Wiring Diagram (Powerup & Output Terminals)

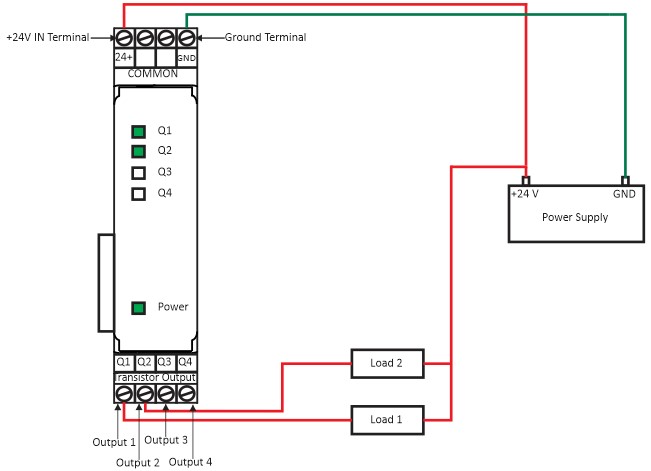

Figure 1(a): Transistor Output Expansion module power up and output wiring.

CPU Module and Expansion Module GPIO Connection Diagram

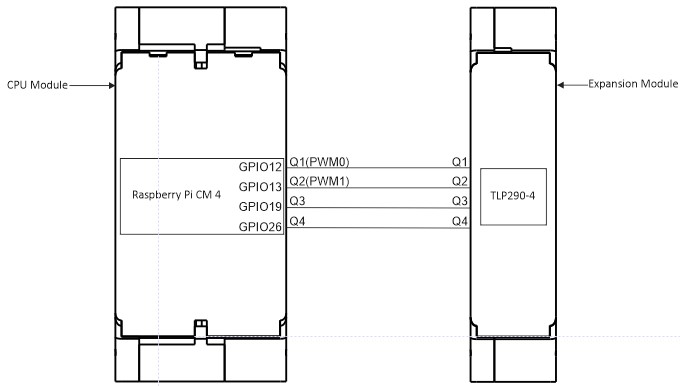

Figure 1(b): The GPIO connection with CPU module and Expansion Module.
OUTPUTGPIO
Q112
Q213
Q319
Q426
Table 1: GPIO vs OUTPUT map.
