Wiring Diagram (Powerup & Input Terminals)

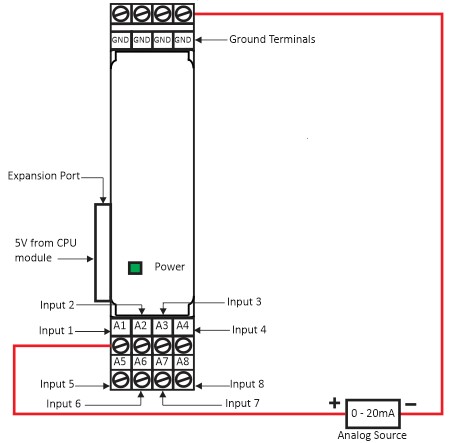

Figure 1: The wiring diagram of the Analog Input Module.

Figure 1 shows how to power up the Analog Input Module. Module operation voltage provide via CPU module. If the wiring is correctly done the Power indication LED will turn on. Further, this wiring diagram shows how to receive analog signal from device.

CPU Module and Expansion Module GPIO Connection Diagram

Figure 2: The GPIO connection with CPU module and Expansion Module.

DIP Switch Configuration

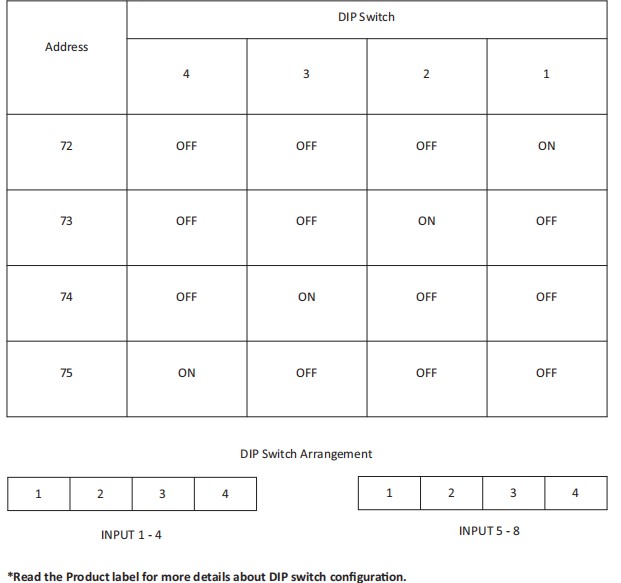

Figure 3: DIP Switches setup ( DIP Switch Configuration Address present in Hexadecimal)
